Name: Large Farm Energy-saving Irrigation Machine DYP-399 for Round-shaped Plots
Brand: Dalian Sanyi Machinery Co., Ltd.
Availability: InStock

Home Products MOBILE PIVOT IRRIGATION SYSTEM

Large Farm Energy-saving Irrigation Machine DYP-399 for Round-shaped Plots

Product Details:

Place of Origin:	Liaoning, China
Brand Name:	SANYI

Contact Now

Detailed Product Description

Type:	IRRIGATION SYSTEM	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Gearbox, Motor
Material:	Metal	Feature:	Increase Irrigation Ratio
Diameter:	16.8	After-sales Service Provided:	Field Installation, Commissioning And Training, Video Technical Support, Online Support
Warranty:	2 Years	Key Selling Points:	Remote Monitoring
Weight:	16000	Product Name:	MOBILE PIVOT IRRIGATION SYSTEM
Application:	Medium Land Irrigation System	Pivot Point:	Towable
Usage:	Agriculture	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Warranty Of Core Components:	5 Years
Condition:	New	Marketing Type:	New Product 2024

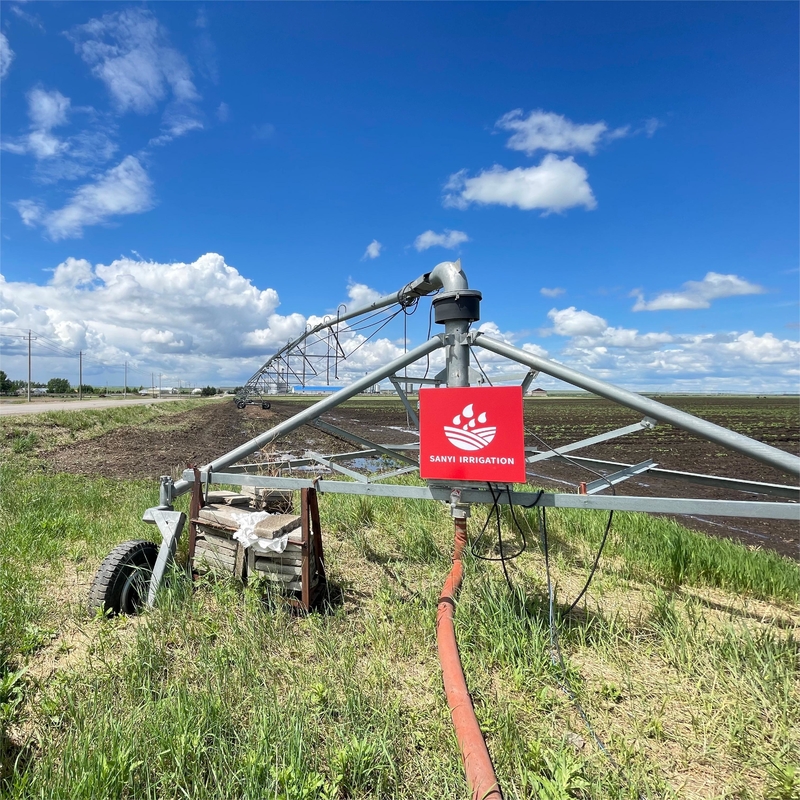

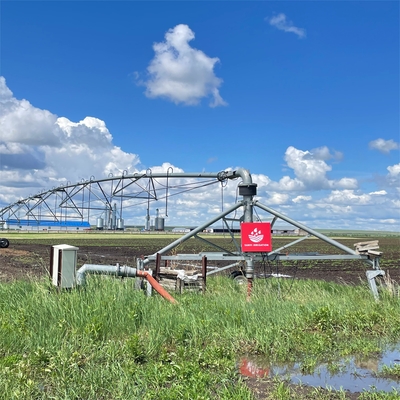

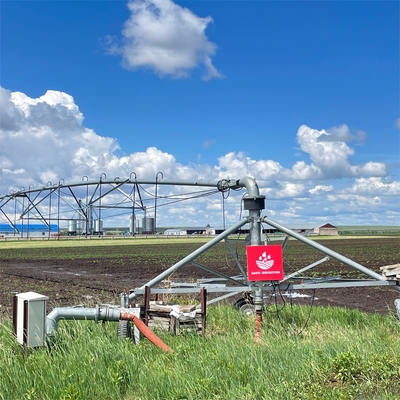

Pivot point	Towable
Wheel No. at the pivot point	3 wheels or 4 wheels
Main pipe	Dia: 6-5/8" (168mm),Thickness:3.2mm, Length: 6.7m or 13.4m
Span	54.5m, 61.3m, 47.9m
Overhang	Dia: 5-9/16"(141mm) for the first 13.4m, 4" for the last 13.4m; Overhang Length：3.5m,6.7m,10m, 13.4m, 16.8m, 20.1m, 26.8m
Flange thickness	10mm
Angles for to pivot legs	100mm100mm10mm
Angles for tower legs	100mm80mm8mm
Angles for the truss	50mm50mm5mm
Truss rod	Dia: 22mm
Working electricity	460--380V/50--60HZ
Power supply	Public power or the generator set
Electrical cable	Amoured, UV-resistant
Motor	Output: 0.75/0.6HP Volts: 460/380 Herz:60/50 RPM: 43/36, from UMC factory in China
Gearbox	Ratio: 50:1, from UMC factory in China
Tire	14.9-24 irrigation tire
Sprinkler	I-wob, option: D3000, R3000 etc.
Pressure regulator	15psi
Sprinkler spancing	2.2m or 4.4m
End light	LED
anti-corrosion coating	Hot-dip galvanization, option: poly lined
Maintenance ladder on the central tower	Available
Emergency protection if one of the carts moves faster than neighbouring ones	Available
Emergency protection in case of electrical fault (short circuit)	Available
Standard control panel functions	Main power switch (Disconnect switch)
		Power on/off
		Water switch
		Forward/Reverse switch
		Percentage timer for speed adjustment
		Auto-reverse switch
		Made of steel, protection level not less than IP65

Q:What is the lead time? A:For irrigation parts, the lead time is 20 days – 30 days.
For irrigation systems, the lead time is 30 days for not more than 10 units. Q:What is the warranty time?
A:2 years.
Q:What about the installation?
A:Our company will send one or two technicians to assist the customer to install the irrigation systems If the customer cannot find local people who are able to install the irrigation system. The customer shall bear the cost of their travel, food and accommodation etc due to the installation.
Q:What about the after-sale service?
A:Our company will deliver one operational manual along with each irrigation system, and our installation engineer will train some technicians for the customer. During the maintenance, the customer can contact our technician at any time for assistance. If you need any parts, you can contact us for it.
Q:Is it easy to find the irrigation parts in the local market?
A:Yes. We have two styles of irrigation systems, Zimmatic style and Valley style. We produce all our parts exactly same as Zimmatic and Valley. If you need irrigation parts, you can either contact us to get it, or buy it from Zimmatic or Valley dealers in case of emergency.
Q:What information should I provide to ask for an offer of an irrigation system?A:Tell us the requirements for your irrigation system. We need to know the size of the irrigation system, or the coordinates of your land with which we can find out the size of the irrigation system suitable for you land. If you have some special requirements,please let us know.
Q:Can I get help in designing an irrigation plan for my farm?
A:Yes. Please follow the steps as follows:
1) Open Google Earth on your computer.
2) Click the border of your farm to make the borderline.
3) Mark the location of water sources—dam, bore well, river, canal, etc.
4) Mark any obstacles in your field such as a house, trees, telegraph pole, road, etc.
5) Save the file as KML file.
6) Send the KML file to us.
